Hacking into a Tenda AC7 Wi-Fi router
Introduction
This is a writeup about a weekend spent attempting to hack a router with some friends. Although we had some background in hardware security, this was our first hands-on hardware hacking session. For a first attempt we bought very simple tools: an SPI programmer, a very basic logic analyzer, a UART-to-USB adapter, and Arduino-style accessories (wires, iFixit toolkit, etc.).
Main objective
The primary objective was to obtain root access and extract the firmware so we could analyze the binaries and emulate them (I planned to use Qiling for emulation). Since we were beginners, the underlying goal was to learn hardware-hacking techniques and the overall workflow for extracting firmware from embedded devices.
The Target
We selected the Tenda AC7 (1200) router which is a basic Wi-Fi and Ethernet router sold by Tenda. Because it’s not produced by a very large vendor, we thought it would be a good introductory target for hardware hacking.Tenda router. it's a most basic Wifi and Ethernet router vendored by Tenda, since it isn't too big of a vendor I figured this could be a good introduction to hardware hacking.
Hacking
UART CCESS

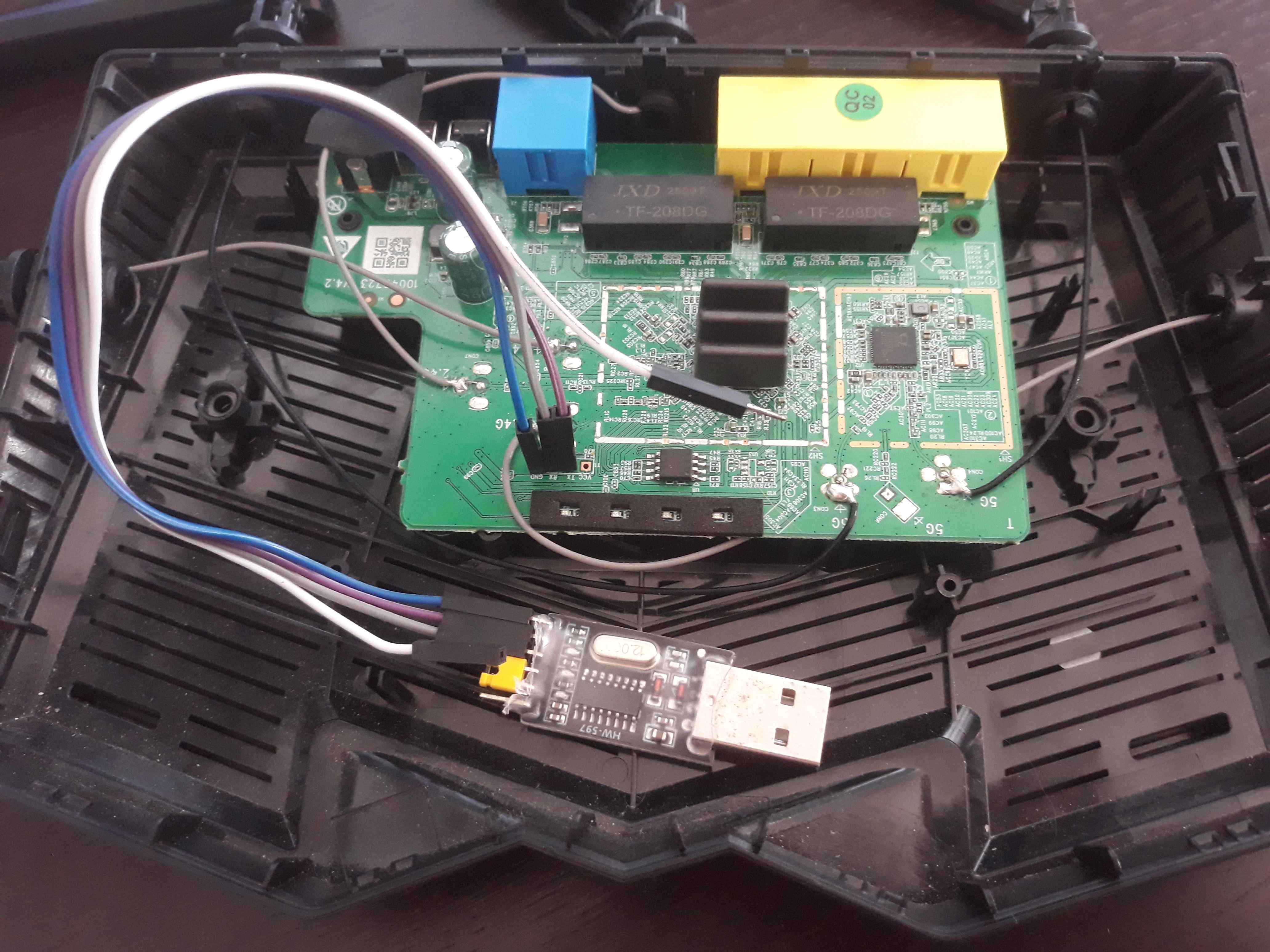

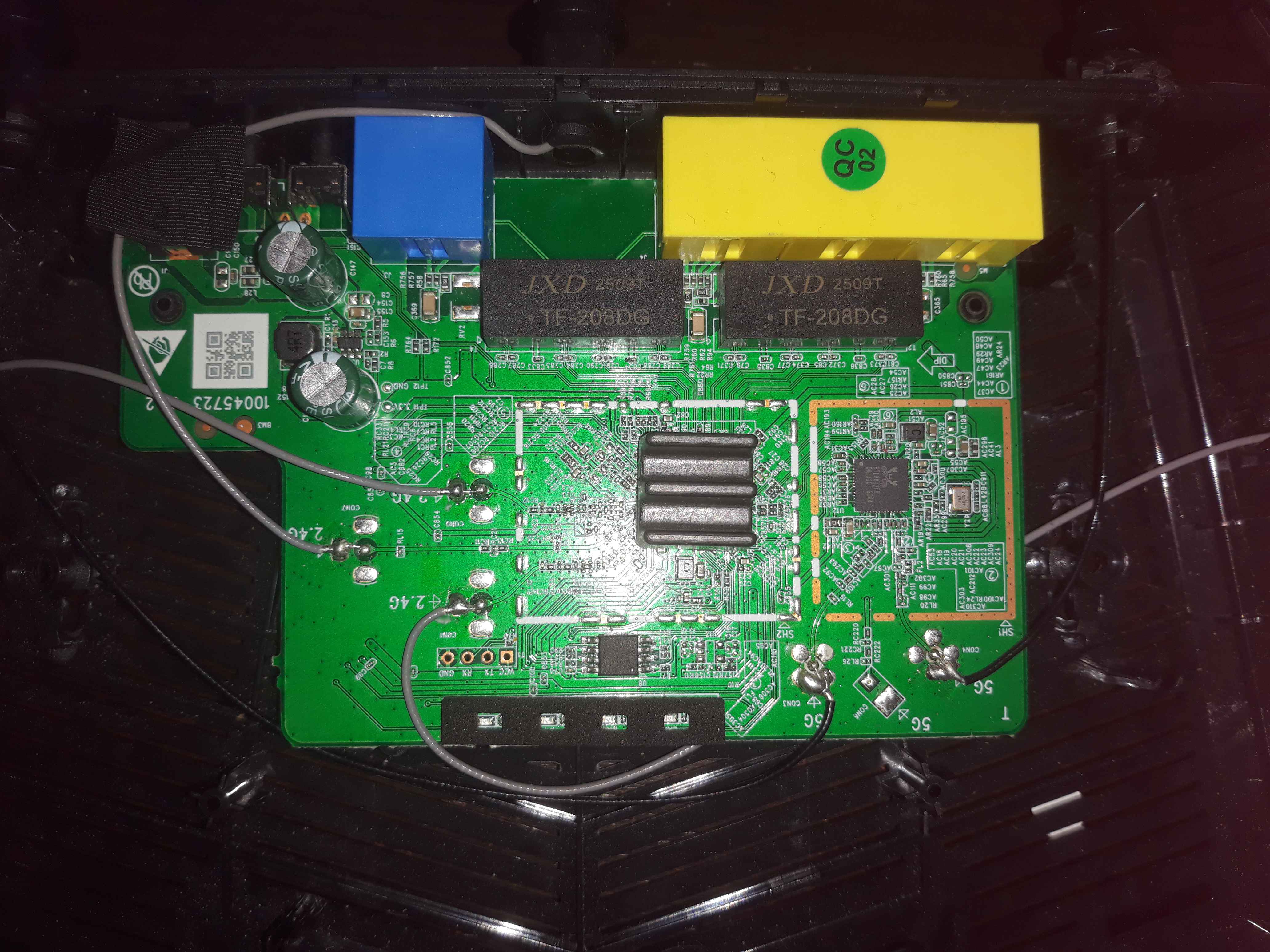

After opening the router we found exposed UART pins on the board, which allowed us to obtain an initial shell prompt.
The UART shell presents two categories of commands: Realtek commands (likely supplied by the SoC vendor) and Tenda commands added by the vendor. The gadgets of particular interest were the Realtek memory-access commands such as db (display byte) and eb (edit bytes), which allow reading and writing arbitrary SoC memory. Most other commands are for configuration and debugging. The shell also includes networking commands and some vendor utilities.
The db and eb commands were especially useful because they let us read raw memory regions of the SoC, which provides a way to extract firmware and kernel images if they are mapped into readable memory.
The first things we tried was to list the file system, but every folders were empty. Maybe the server as somem kind of RBAC and we'll need to escalate our privileges, or it could also be possible that all the files are stored in RAM.
CLI> help
Realtek's command:
Commands Descriptions Usage
-------- ------------ -----
db db <Address> <Len>
dw dw <Address> <Len>
eth eth
wlan0 wlan0
wlan0-va0 wlan0-va0
wlan0-va1 wlan0-va1
wlan0-va2 wlan0-va2
wlan0-va3 wlan0-va3
wlan0-vxd wlan0-vxd
wlan1 wlan1
wlan1-va0 wlan1-va0
wlan1-va1 wlan1-va1
wlan0-va2 wlan0-va2
wlan1-va3 wlan1-va3
wlan1-vxd wlan1-vxd
eb eb <Address> <Value1> <Value2>...
ew ew <Address> <Value1> <Value2>...
alg alg
brconfig brconfig
cat
cpuload cpuload
date show system local time
excep cause exception
fastpath fastpath
getmib getmib
help Displays a list of commands
? Displays a list of commands
hexcat
dump Shows a memory dump
hw_nat hw_nat
ib ib
idd idd
ifconfig ifconfig
ip6fw ip6fw
ipfw ipfw
irf irf
iw iw
iwpriv iwpriv
ll
mac mac <ifname> [mac addr]
mroute mroute
ndp ndp
ob ob
od od
orf orf
ow ow
pdump dump a thread
ping ping
port_fwd port_fwd
version Shows build version
ps Shows a list of threads
reboot Reset the system
reinit reinit
reinit_test reinit_test
reset Reset the system
route set static route
rssi rssi
alias show alias table
rtl_vlan rtl_vlan
sp Sets a threads priority [thread ID]
setmib setmib
show show
tcpstats tcpstats
test_skb test_skb
kill Kills a running thread [thread ID]
release Break a thread out of any wait [thread ID]
trigger_port trigger_port
uptime Shows system uptime
watchdog on/off/res/reboot
Tenda's command:
msg ipnat spi_unlock rs show_arp_bufce_power
app_debug build stat_link link_status iwpriv realtek
splx thread mbuf debug route et
wlconf fw ping ifconfig syslog time
tenda_arp arp envram nvram restart reboot
ifconfig6 cat route6 ping6
Boot sequence
The UART boot log was very talkative and provided a number of useful details: the SoC and flash vendor/type, DRAM type, DRAM size and frequency, the flash part number, vendor messages, the kernel decompression address and startup address, MAC address, and the web server and UPnP services started by the system.
In conclusion, the boot messages revealed:
- The SoC (RTL8197F family) and bootloader version/date.
- The flash chip vendor and model (Winbond W25Q16 or similar) and its size (2 MB).
- The kernel image load/start addresses and that the kernel was decompressed at boot.
- The embedded web server GoAhead.
Booting...
init_ram
DDR init OK
init ddr ok
DRAM Type: DDR2
DRAM frequency: 533MHz
DRAM Size: 32MB
JEDEC id EF4015, EXT id 0x0000
found w25q16
flash vendor: Winbond
Flash is locked!
w25q16, size=2MB, erasesize=4KB, max_speed_hz=41MHz
auto_mode=0 addr_width=3 erase_opcode=0x00000020
Write PLL1=80c00042
=>CPU Wake-up interrupt happen! GISR=89000080
RTL8197F-VG boot release version:672 (Sep 18 2020-09:23:56) (999MHz)
Mac addr:58-d9-d5-d2-6b-60
use Switch new descriptor
wait for upgrage
port link 0x000030e0 0x000030e0 0x000030e0 0x000030e0
irq:0x00008080
Jump to image start:0x80700000...
decompressing kernel:
Uncompressing... done, booting the kernel.
done decompressing kernel.
start address: 0xa0000600
...SNIP...
Configuration for Embedthis GoAhead Community Edition
---------------------------------------------
Version: 5.1.0
BuildType: Release
CPU: mips
OS: ecos
Host: 192.168.0.1
Documents:
---------------------------------------------
Started http://192.168.0.1:80
Started https://192.168.0.1:443
Started http://fe80:0001::5ad9:d5ff:fed2:6b60:80
Started https://fe80:0001::5ad9:d5ff:fed2:6b60:443
[TPI->tpi_http_start->143]:http start success!
[TPI->tpi_upnp_start->107]:start success!
...SNIP...
This boot sequence gives a lot of future useful informations, from the name of the Chip holding the flash, to the name of the microcontroller and the address where the kernel is situated, as well as the name of the linux kernel.
Firmware dump
We used two complementary approaches to obtain the firmware: direct SPI flash reading and memory dumping via UART.
From SPI

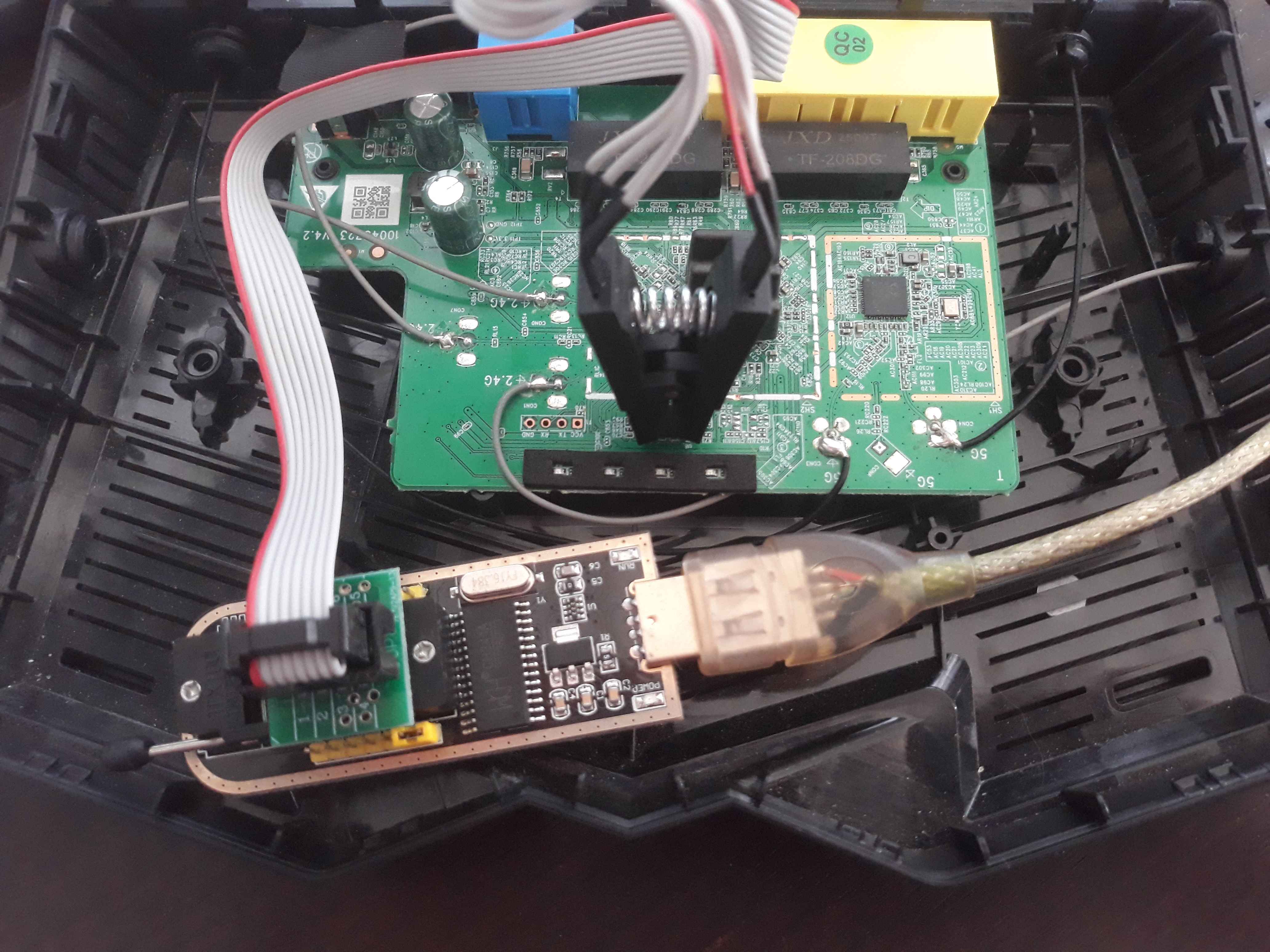

The flash chip on the board is a Winbond W25Q16 (W25Q16JVSSIQ). It communicates via SPI and all its pins were accessible. We initially tried to capture the SPI traffic with a low-end logic analyzer, but it was limited to 24 MHz and couldn’t reliably capture the flash operating at ~130 MHz. So we switched to a dedicated SPI programmer (ch341a) and used flashrom to read the chip directly.
~ $ flashrom --verbose --chip "W25Q16.V" --programmer ch341a_spi --read content-v3.bin
The SPI read produced a 2 MB image, which we further analyzed with binwalk.
~ $ binwalk flash-dump.bin
/home/kaddate/projets/Tenda_Router/tristan_tenda/extract/content.bin
------------------------------------------------------------
DECIMAL HEXADECIMAL DESCRIPTION
------------------------------------------------------------
35096 0x8918 CRC32 polynomial table, little endian
36192 0x8D60 gzip compressed data, operating system: Unix, timestamp: 2020-09-18 01:24:02, total size: 39102 bytes
141336 0x22818 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, compressed size: 1503886 bytes, uncompressed size: 5150536 bytes
------------------------------------------------------------
Analyzed 1 file for 85 file signatures (187 magic patterns) in 43.0 milliseconds
From UART
Because the SoC maps the SPI flash into the CPU address space at the address 0xb0000000 into a region of 128MB, we were also able to dump memory via the UART shell using the db command. We requested a large read (about 10 MB) from the flash-mapped region using the db command and saved the textual hexdump from the UART to a file. The dump itself took more than 3 hours.
~ $ db 0xb0000000 0xa00000
Converting the hexdump back into a binary gave a dump that closely matched the SPI read. The fact that the data repeats itself is not explained (see binwalk output), but my guess is that when reading the memory of the Flash Chip using the UART interface, the SoC actually makes read calls to the Chip and it may apply a modulus on the addresses that exceeds its memory, like most CPUs. In any case the UART-based extraction produced the same firmware blobs (DEFLATE/LZMA) as the SPI read.
~$ binwalk laptop_flash-dump-uart.bin
/home/kaddate/projets/Tenda_Router/UART/laptop_flash-dump-uart.bin
---------------------------------------------------------------------------------------------------------------
DECIMAL HEXADECIMAL DESCRIPTION
---------------------------------------------------------------------------------------------------------------
35096 0x8918 CRC32 polynomial table, little endian
36192 0x8D60 gzip compressed data, operating system: Unix, timestamp: 2020-09-18 01:24:02, total size: 39102 bytes
2132248 0x208918 CRC32 polynomial table, little endian
2133344 0x208D60 gzip compressed data, operating system: Unix, timestamp: 2020-09-18 01:24:02, total size: 39102 bytes
2238488 0x222818 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, compressed size: 1503886 bytes, uncompressed size: 5150536 bytes
4229400 0x408918 CRC32 polynomial table, little endian
4230496 0x408D60 gzip compressed data, operating system: Unix, timestamp: 2020-09-18 01:24:02, total size: 39102 bytes
4335640 0x422818 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, compressed size: 1503886 bytes, uncompressed size: 5150536 bytes
6326552 0x608918 CRC32 polynomial table, little endian
6327648 0x608D60 gzip compressed data, operating system: Unix, timestamp: 2020-09-18 01:24:02, total size: 39102 bytes
6432792 0x622818 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, compressed size: 1503886 bytes, uncompressed size: 5150536 bytes
8423704 0x808918 CRC32 polynomial table, little endian
8424800 0x808D60 gzip compressed data, operating system: Unix, timestamp: 2020-09-18 01:24:02, total size: 39102 bytes
---------------------------------------------------------------------------------------------------------------
Analyzed 1 file for 85 file signatures (187 magic patterns) in 208.0 milliseconds
kernel dump
Another dump possible is the dump of the RAM, We figured that if the Kernel is packed in some ways, the RAM would held the unpacked kernel. We dumped it using the UART terminal and the informations given by the boot and the microcontroller datasheet.
➜ UART binwalk laptop_memory_dump_uart.bin
/home/kaddate/projets/Tenda_Router/UART/laptop_memory_dump_uart.bin
-----------------------------------------------------------------------------------------------------------------------------------------------------
DECIMAL HEXADECIMAL DESCRIPTION
-----------------------------------------------------------------------------------------------------------------------------------------------------
384 0x180 eCos kernel exception handler, MIPS little endian
3377032 0x338788 Copyright text: "Copyright (c) Embedthis Software Inc., 1993-2014. All Rights
Reserved.Copyright (c) GoAhead Software"
3449592 0x34A2F8 CRC32 polynomial table, little endian
3451968 0x34AC40 SHA256 hash constants, little endian
3482168 0x352238 SHA256 hash constants, little endian
3507104 0x3583A0 AES S-Box
3959612 0x3C6B3C PEM certificate
3967792 0x3C8B30 PEM private key
3969468 0x3C91BC PNG image, total size: 1332 bytes
3970804 0x3C96F4 PNG image, total size: 392 bytes
3971200 0x3C9880 GIF image, 18x18 pixels, total size: 1407 bytes
3972608 0x3C9E00 PNG image, total size: 13652 bytes
3986264 0x3CD358 PNG image, total size: 848 bytes
3987116 0x3CD6AC PNG image, total size: 1187 bytes
3988304 0x3CDB50 PNG image, total size: 15089 bytes
4003396 0x3D1644 PNG image, total size: 354 bytes
4003791 0x3D17CF SVG image, total size: 1322 bytes
4005116 0x3D1CFC PNG image, total size: 3421 bytes
4008540 0x3D2A5C PNG image, total size: 939 bytes
4009480 0x3D2E08 PNG image, total size: 871 bytes
4010352 0x3D3170 PNG image, total size: 1523 bytes
4011915 0x3D378B SVG image, total size: 1267 bytes
4013184 0x3D3C80 PNG image, total size: 2809 bytes
4015996 0x3D477C PNG image, total size: 609 bytes
4016608 0x3D49E0 PNG image, total size: 767 bytes
4434540 0x43AA6C Copyright text: "Copyright 2013 Scott Jehl * Licensed under
https://github.com/scottjehl/Respond/blob/master/LICENSE"
4457708 0x4404EC Copyright text: "Copyright 2014 ET.W * Licensed under Apache License v2.0 * *
The REasy UI for router, and themes "
4605608 0x4646A8 AES S-Box
5690224 0x56D370 AES S-Box
5698928 0x56F570 AES S-Box
6880900 0x68FE84 CRC32 polynomial table, little endian
-----------------------------------------------------------------------------------------------------------------------------------------------------
Analyzed 1 file for 85 file signatures (187 magic patterns) in 49.0 milliseconds
The RAM dump contained many recognizable artifacts: embedded web resources (HTML/CSS/JS), images, certificates/keys, and cryptographic constants (SHA256, AES S-box tables), as well as strings and license texts referencing embedded components (for example, GoAhead web server and some open-source UI libraries). We also observed and identified eCos Kernel pattern which indicates that we might have dumped the unpacked kernel correctly.
Looking into the Bootloader

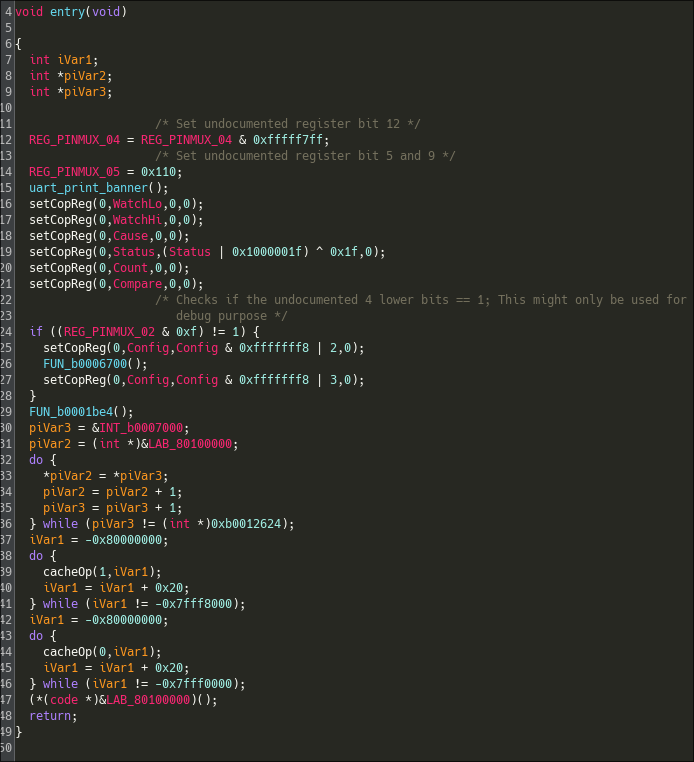

Since we don't how the bootloader launches the kernel, we decided to throw it into Ghidra. We started by identifying the entry() function located at 0x0c in the SPI flash and 0xb000000c in the SoC. It first configures the lower bits of a set of proprietary pin registers (REG_PINMUX_04, REG_PINMUX_05), then writes to undocumented UART registers in the rt_uart_1 memory region to print the first boot string: Booting....

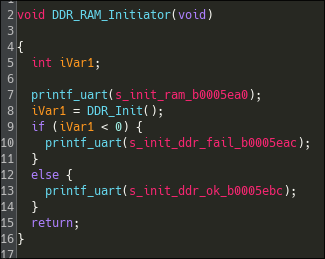

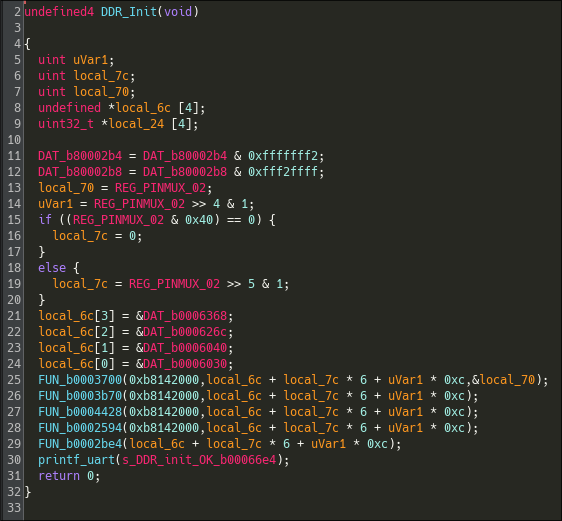

After some coprocessor configuration, the bootloader initializes the DRAM. Unfortunately, much of the code interacts with proprietary, undocumented memory regions that are neither described in the datasheet nor accessible from the UART shell. Attempts to read those regions via the UART just return zeros, which suggests they may be protected or bank-switched.

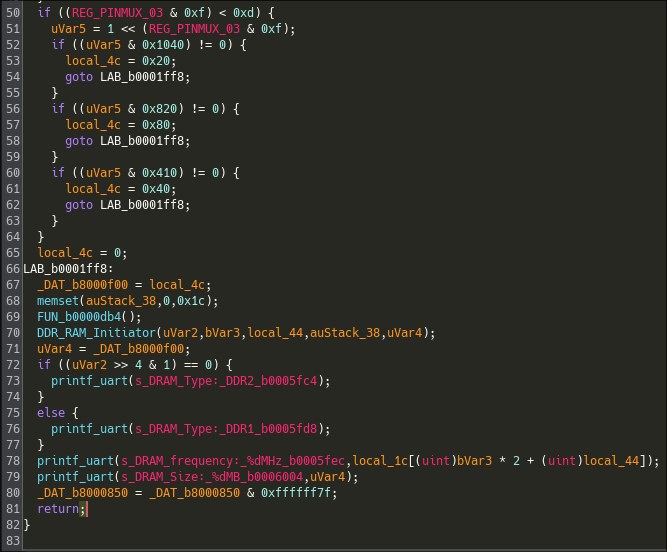

The next major function we identified prepares a buffer using a routine that we identified as memset(), then calls several subroutines that depend heavily on vendor-specific registers and interrupt/handler tables. These routines appear to configure hardware peripherals and low-level runtime state before jumping to the decompression/kernel entry.
Overall, we were able to map out the high-level responsibilities of the boot stages and name several key routines, but we did not reverse every detail. Determining the exact purpose of each pin and register will require significant additional work. Iterating between static analysis in Ghidra, dynamic testing on hardware, and emulation to observe side effects, confirm register semantics, and handle any protection mechanisms.
Notes and lessons learned
- First and foremost: methodology. Since this was our first hardware-hacking attempt, we learned a lot about how to structure future sessions. We realised we rushed in headfirst and should have been more patient. Spending more time analysing the data and artifacts we found, planning our steps, and iterating between static and dynamic analysis instead of jumping straight to the next action.
- Hardware hacking can be cheap! However, tool quality matters. While inexpensive tools are great to get started, they can also become a limitation. Our low-end logic analyser couldn’t capture the flash at its actual clock speed, forcing us to fall back on the SPI programmer and UART extraction (which was also very shady). For similar targets, it’s worth investing in (or borrowing) a slightly better analyser or programmer and pogo pins.
